How to Measure Shower Arm Thread Size

As an Amazon Associate we earn from qualifying purchases.

If you need shower arm thread size how to measure guidance, start with the thread type, not the nominal number on a listing. The check is worth doing before you buy a replacement arm or head. The manufacturer sheets opened for this guide describe the common North American connection as 1/2 inch NPT, a tapered pipe thread with 14 threads per inch. One sheet lists a different designation, G 1/2, and the sources do not say whether the two fit together. This guide covers how to check your part, what the sources confirm, and where they stop.

Quick answer

• Several arm and fitting sheets list 1/2 inch NPT. The Waterworks and Speakman sheets state it for the arm itself, and the Kohler and Kallista sheet calls for a 1/2 inch NPT pipe nipple.
• A 1/2 inch NPT thread has 14 threads per inch. A gauge datasheet and a reference table both give this count.
• One reference table lists the actual outside diameter of a 1/2 inch NPT thread as 0.840 inch. The standard excerpt that was opened does not contain that table, so the figure is not confirmed from the standard itself.
• Count the threads, check the outside diameter, and compare both with the sheet for your exact model. Use sealant as the sheet says, and do not overtighten.

How we chose

The sources were grouped by what each one can establish. The ASME B1.20.1 document is the governing standard for NPT. A Hoffmann Group gauge datasheet and the Wikipedia thread table give the thread count and the diameter. Manufacturer installation sheets show how 1/2 inch NPT is used on shower arms in practice. Retail product listings were not used for procedure. Two pages were left out: an Engineers Edge page that returned a bot challenge instead of content, and an ASME landing page that returned a 404. Seven sources were opened on 2026-10-22. Each quoted line was checked against the saved text of its source before it was used.

Source	Type	What it states for this topic
ASME B1.20.1-2013 excerpt	Standard body	Covers general purpose pipe threads, including a taper NPT section. The excerpt is front matter and contents only.
Hoffmann Group gauge datasheet	Manufacturer data	Describes 1/2 inch NPT, 14 threads per inch, standard ANSI / ASME B 1.20.1.
Wikipedia, National pipe thread	Reference table	Gives the taper rate, the standard, and a size table with 0.840 inch outside diameter for 1/2 inch.
Kohler and Kallista shower arm sheet	Installation sheet	Calls for a male 1/2 inch NPT pipe nipple, sealant tape, and a strap wrench.
Waterworks formwork shower arm sheet	Installation sheet	Lists a female 1/2 inch NPT inlet and a male 1/2 inch NPT outlet.
Speakman shower arm sheet	Installation sheet	Lists 1/2 inch NPT on the supply inlet and outlet, and warns against overtightening.
Victorian Plumbing shower arm sheet	Installation sheet	Gives the connecting thread as G 1/2 and calls for PTFE tape on the threaded side.

What the thread standard says

NPT stands for National Pipe Taper. The standard that defines it is ASME B1.20.1. The excerpt that was opened is from the 2013 revision, titled “Pipe Threads, General Purpose (Inch)”. Its contents include a section called “Specification for Taper Pipe Threads, NPT”. That excerpt is front matter and a table of contents only. It confirms that the standard covers NPT, but it does not include the dimension values, so the diameter figure in this guide comes from another source and is labelled as such.

The Hoffmann Group datasheet for a 1/2 inch NPT ring gauge describes NPT as an “American Standard taper pipe thread”, gives a taper of 1 in 16, and lists the standard as ANSI / ASME B 1.20.1. Its thread entry reads 14. It is a gauge product sheet rather than the standard, but it ties the 1/2 inch size to the same designation and the same thread count.

The Wikipedia article on National pipe thread says that “NPT is defined by ANSI / ASME standard B1.20.1”. It gives the taper as 1 inch of diameter in 16 inches of length, which is 3/4 inch per foot. Its size table lists the 1/2 inch size at 14 threads per inch and an actual outside diameter of 0.840 inch (21.3360 mm). The article’s references include Machinery’s Handbook. It is a secondary source, so the 0.840 inch figure is treated here as a reference value, not as a dimension confirmed from the standard text.

The article also explains why the name is misleading. The nominal size is loosely related to the inside diameter of Schedule 40 pipe, and the actual diameter of the NPT threads is larger than the nominal size, considerably so for small sizes. That is why “1/2 inch” is a label for the pipe size, not a measurement you can read with a ruler.

The taper is what makes an NPT joint seal when it is tightened. According to the Wikipedia article, the taper lets the flanks of the threads compress against each other as the joint is torqued. Because the diameter changes along the thread, one outside-diameter figure is a reference point, not a reading that holds at every spot on the thread.

Step-by-step: how to measure shower arm thread size

The steps below follow from the thread data in the standard references and from the installation sheets. None of the opened sources gives a full measuring procedure, so the order here is a practical sequence built on the figures the sources do state. The sources do not say whether a caliper or a ruler is the better tool, so the checks below use the figures and not a specific instrument.

Step 1: Shut off the water

Each installation sheet opened starts with the supply. The Kohler and Kallista sheet says to shut off the water supply before work begins, and the Victorian Plumbing sheet says the incoming mains supply should be switched off before the installation starts. Observe local plumbing codes, as both sheets also say.

Step 2: Identify which end you are measuring

Connections are not the same across models. The Waterworks arm lists a female 1/2 inch NPT inlet and a male 1/2 inch NPT outlet. Its instructions have you thread the arm onto a 1/2 inch NPT nipple that is already installed in the wall. The Speakman sheet works the other way round: it has you thread the arm into a female pipe fitting within the wall, and it lists 1/2 inch NPT on both the supply inlet and the outlet. So the wall end and the head end of one arm can have different genders, and the arms in these sheets do not share a single layout. Check the part you hold rather than assuming a pattern from another model.

Step 3: Count the threads per inch

Count the threads across one inch with a ruler or a caliper that has a thread-count scale. A 1/2 inch NPT thread has 14 threads per inch, according to the Hoffmann datasheet and the Wikipedia table. The same table lists 18 threads per inch for the 1/4 and 3/8 inch sizes. A count that is not 14 does not match the 1/2 inch NPT described in these sources, so check the model sheet before buying. The sources do not cover every other thread standard, so a mismatch does not tell you which size the part actually is.

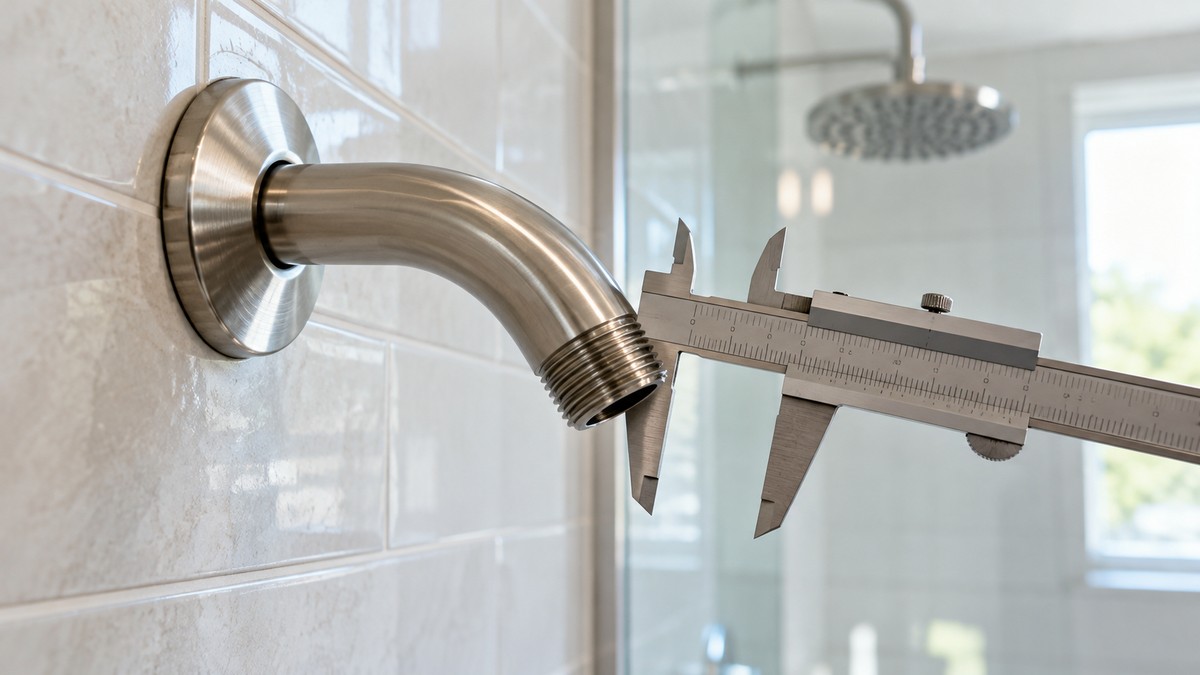

Step 4: Measure the outside diameter

The Wikipedia table gives 0.840 inch as the actual outside diameter for the 1/2 inch size. Because the thread is tapered, the diameter changes along its length. Take the reading at one spot, write down where you took it, and compare the figure with 0.840 inch. A reading close to that value fits the table. A reading far from it does not confirm 1/2 inch NPT, and the sources do not give a tolerance for how close is close enough.

Step 5: Check the model sheet

Compare your thread count and diameter with the sheet for your exact model, not a sheet for a similar product. The Speakman rough-in notation reads 1/2-14 NPT, which is the same size with the thread count written in. The Victorian Plumbing sheet lists “G 1/2” as the connecting thread, which is a different designation. The Kohler and Kallista sheet calls for a male 1/2 inch NPT pipe that extends 1/2 inch beyond the finished wall. If the sheet and the part do not agree, contact the manufacturer before buying a replacement.

Thread size and arm length are separate checks. The sheets above give the thread, and the arm’s reach has to be checked on its own. For a side-by-side look at arms and slide bars, see shower arms and slide bars compared.

Step 6: Apply sealant

The sheets call for sealant on the threads, and they name different materials. The Kohler and Kallista sheet says to apply sealant tape to the exposed threads of the pipe nipple. The Victorian Plumbing sheet says to use PTFE sealing tape on the long threaded side of the arm. The Speakman sheet says to apply thread seal tape to the inlet side of the arm. The Wikipedia article adds that tape also helps limit corrosion on the threads, which can otherwise make later removal hard. Use the material the sheet names for your model.

Step 7: Tighten with the right tool

Use a strap wrench or a protected wrench on the finished surface. The Kohler and Kallista sheet calls for a clean strap wrench to tighten the arm securely. The Waterworks sheet says to use only a strap wrench or a protected or smooth-jaw wrench on any finished surface. The Speakman sheet warns against overtightening and says that doing so may damage the connection. None of the sheets gives a torque value, so tighten the connection securely without forcing it.

Step 8: Turn the water on and check for leaks

Turn the water back on, then run hot and cold water through the arm to flush out dirt and debris. The Waterworks sheet says to run water for several minutes and then check all connections for leaks. The Victorian Plumbing sheet adds a final check: make sure the shower head and arm are securely fixed to the wall before use.

Mistakes to avoid

• Reading “1/2 inch” as an outside measurement. The Wikipedia article says the actual thread diameter is larger than the nominal size, and its table gives 0.840 inch for the 1/2 inch size.
• Assuming G 1/2 fits 1/2 inch NPT. The Victorian Plumbing sheet lists G 1/2 as its connecting thread. None of the opened sources says whether the two designations mate.
• Assuming both ends of an arm match. The Waterworks arm has a female inlet and a male outlet, so the two ends are not interchangeable.
• Skipping sealant. The Kohler and Kallista, Speakman, and Victorian Plumbing sheets all call for sealant or tape.
• Overtightening. The Speakman sheet warns that overtightening may damage the connection.

Before you buy: a short checklist

• Find the connection type on the sheet for your exact model.
• Count the threads per inch. A 1/2 inch NPT should read 14.
• Check the gender of each end, because the sheets do not share one layout.
• Note any G 1/2 or other non-NPT designation, and ask the seller or manufacturer before buying a part that might not mate.
• Confirm the head-side connection separately. The sheets describe the arm connection, not every head.

If the head you want attaches by a hose rather than a fixed arm, the connection checks above still apply to the hose fitting. See the hand-held shower head extension hose guide for that setup, and the replacement hose guide for Waterpik heads if the hose itself is the part being replaced.

What we could not verify: what the sources do not say

• The dimension table in the ASME standard. The excerpt that was opened is front matter and a contents list. The 0.840 inch outside diameter comes from the Wikipedia table, and it has not been confirmed in the standard text.
• A measuring procedure. None of the opened sources describes how to measure a thread, including which tool to use, where along the thread to read the diameter, or how many readings to take.
• Tolerance. The sources do not say how far a reading can be from 0.840 inch and still count as 1/2 inch NPT.
• The head-side thread. The sheets describe the arm connection. None of the opened sources gives the thread for every shower head.
• Whether G 1/2 and 1/2 inch NPT fit together. The Victorian Plumbing sheet gives G 1/2 without naming a standard, and no other opened source addresses the mismatch.
• Whether 1/2 inch NPT is universal. Several sheets use it, but the sources do not claim it is the only size used for shower arms.
• Thread specifications beyond the eight sources. The seven sources cover four installation sheets and two reference documents. They are not a survey of the arms on the market.

FAQ

Is every shower arm 1/2 inch NPT?

No. Several sheets list 1/2 inch NPT, but the Victorian Plumbing sheet lists G 1/2 as its connecting thread. The sources opened do not show that 1/2 inch NPT is used by every shower arm, so check the sheet for your model.

Does the 1/2 in the name mean the outside diameter is half an inch?

No. The Wikipedia article explains that the nominal size is loosely related to pipe inside diameter, and that the actual diameter of the NPT threads is larger than the nominal size. Its table gives 0.840 inch as the outside diameter for the 1/2 inch size.

How many threads per inch does a 1/2 inch NPT thread have?

It has 14 threads per inch. The Hoffmann Group gauge datasheet and the Wikipedia size table both give this count, and the Speakman sheet writes the size as 1/2-14 NPT.

Do I need thread sealant?

The sheets opened say to use sealant, and they name tape or PTFE tape. Follow the sheet for your model. The Wikipedia article adds that tape also helps limit corrosion on the threads.

Can I confirm the size with a ruler alone?

The sources support a combination of checks: thread count, outside diameter, and the model sheet. None of the opened sources describes a ruler-only method, so a single measurement should not be treated as confirmation.

What should I do if the sheet says G 1/2?

Do not assume it fits a 1/2 inch NPT connection. The opened sources do not say whether the two designations mate. Ask the seller or the manufacturer before buying, and confirm the thread type on the part you are replacing.

Bottom line

For the common North American connection, the opened sources support 1/2 inch NPT with 14 threads per inch. Check the model sheet first, count the threads, check the gender of each end, and use sealant as the sheet says without overtightening. If the sheet says G 1/2, or if the count and the sheet disagree, ask the manufacturer before you buy.

Sources

1. ASME B1.20.1-2013, Pipe Threads, General Purpose (Inch), opened excerpt (front matter and contents). https://www.asme.org/getmedia/1a201f23-e83c-42f6-bb4f-90b94e25960c/35257.pdf (opened 2026-10-22)
2. Hoffmann Group, data sheet for “Go” / “No Go” ring gauge NPT, 1/2 inch, order 486405. https://cdn.hoffmann-group.com/dsh/en-GB/dsh_en-gb_52980.pdf (opened 2026-10-22)
3. Wikipedia, National pipe thread. https://en.wikipedia.org/wiki/National_pipe_thread (opened 2026-10-22)
4. Kallista (Kohler), Shower Arm installation instructions, P24762. https://resources.kohler.com/interiors/kallista/pdf/1226929-2.pdf (opened 2026-10-22)
5. Waterworks, Formwork wall and ceiling mounted shower arms, installation guidelines, 90815. https://assets.waterworks.com/wasset/15/original/90815.pdf (opened 2026-10-22)
6. Victorian Plumbing, Shower Head With Wall Mounted Arm, fitting instructions V2.02.24. https://images.victorianplumbing.co.uk/products/cruze-ultra-thin-round-shower-head-300mm/instructions/vp-wall-mounted-shower-arm-v2-02-24.pdf (opened 2026-10-22)
7. Speakman, Shower Arm instructions for models CDS2501, 92-CDS2501-01. https://zoro.com/static/cms/enhanced_pdf/Speakman%20Co_92CDS250101.pdf (opened 2026-10-22)
