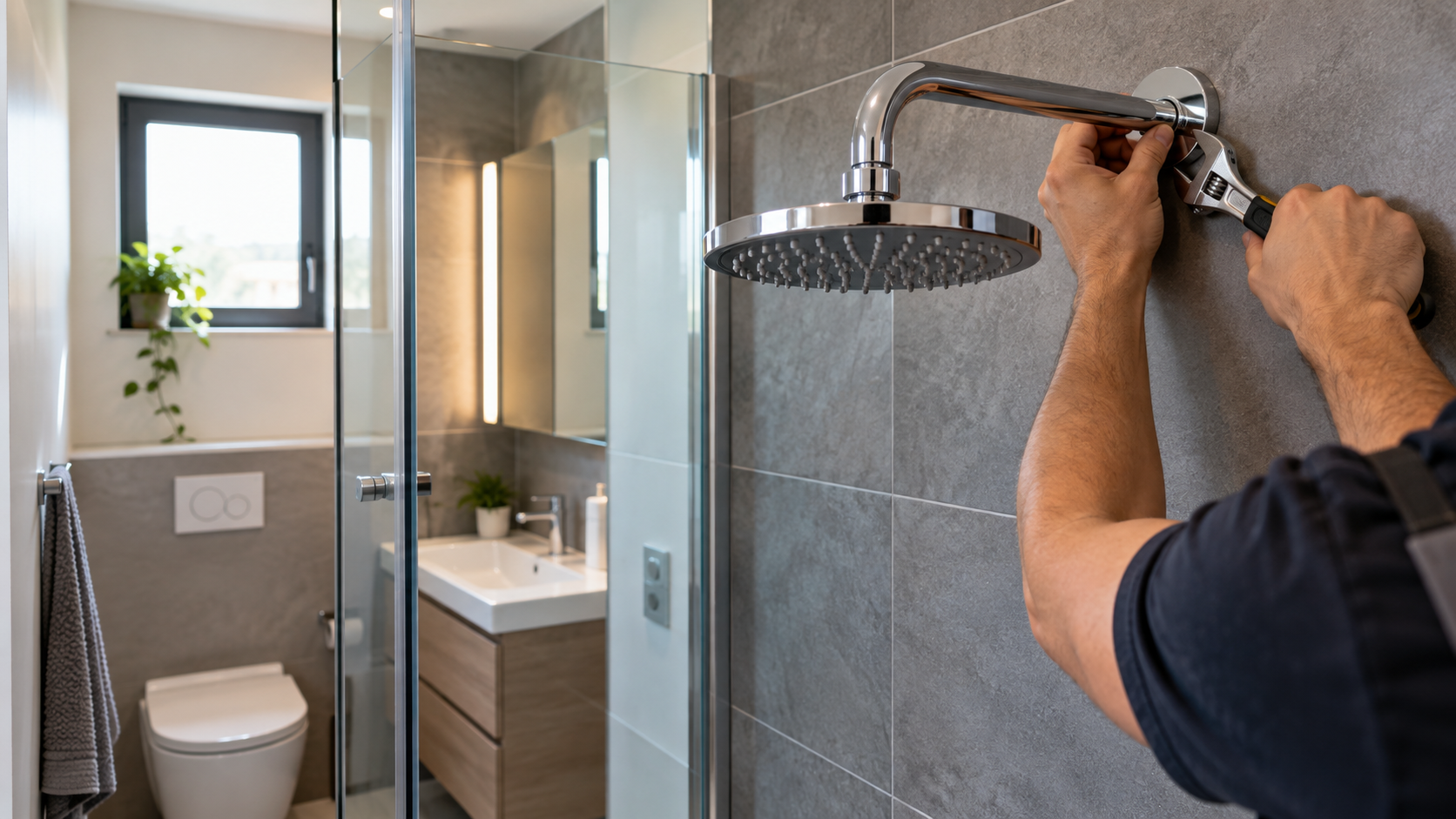

Plan a Fixed Shower Head Installation for Compact Bathroom

ByKen

As an Amazon Associate we earn from qualifying purchases.

Fixed shower head installation planning for a compact bathroom begins with clearance, not a wrench. Measure the head’s full body, its angle range, and the space needed for your hand to thread and adjust it. Then decide whether the job is a head-only replacement or also involves the arm. A small enclosure can accept a standard threaded head yet still be unusable if the spray face hits glass, points outside the wet area, or crowds the user. Keep the existing arm when it is sound and correctly placed; stop if it moves at the wall.

Quick answer

  • Make a cardboard profile of the new head and sweep it through its adjustment range before removal.
  • Verify the connection and follow that model’s tape, washer, and tightening instructions.
  • Hold the shower arm steady, start threads by hand, and never force a crooked connection.
  • Call a plumber if the arm or concealed elbow moves, the threads are damaged, or water appears at the wall.

Map the usable space around the arm

A compact bathroom makes three clearances matter at once: the distance from the wall to the spray face, the distance from the head to a door or side panel, and the standing space below it. Record the existing arm outlet height and projection. Also note whether the arm points straight out, bends down, or ends near a ceiling, shelf, light, or glass return.

Do not compare only the old and new face diameters. A fixed head usually pivots at a ball joint, so its moving envelope is larger than its front view. Trace the side profile from the new head’s dimensional drawing onto cardboard, include the connector, and hold the template at the arm. Sweep it left, right, up, and down. The template should not touch the wall, ceiling, enclosure, or door hardware, and the intended spray direction should remain inside the wet area.

Use two simple clearance calculations

side clearance = arm centerline-to-obstruction distance − half of maximum head width

If the arm centerline is 7 inches from a glass panel and the widest head is 10 inches, the static side clearance is 7 − 5 = 2 inches. That is only a screening number: a projecting body or angled head can require more room.

standing clearance = wall-to-user space − head projection from wall

For a 30-inch wall-to-user zone and a head that projects 8 inches, 22 inches remain. These examples show the method, not universal minimums. The acceptable result depends on the actual user, enclosure, and spray pattern.

Compact-room check Continue when Stop when
Adjustment sweep The head moves without contact It hits glass, ceiling, wall, or hardware
Spray direction Useful angles point into the tub or receptor The only clear angle sprays an opening
Arm stability The arm remains firm at the wall The arm or escutcheon shifts with light hand pressure
Thread start The head turns smoothly by hand It binds immediately or sits crooked
Service access A hand and specified tool can reach the joint The enclosure prevents controlled tightening

Separate a head swap from an arm replacement

A head-only swap leaves the pipe entering the wall untouched. Replacing the shower arm adds a concealed threaded connection and a wall opening to the job. The KALLISTA/Kohler instructions for its head-and-arm assembly call for installing the arm into the shower elbow, flushing the system before fitting the head, and checking operation. Those steps should not be borrowed blindly for a head sold with a different connection method.

Inspect the exposed arm for cracked plating, flattened threads, corrosion, and evidence of leakage at the wall. Apply gentle hand pressure while watching the escutcheon. Kohler’s retrofit instructions warn that moving supply piping must be secured before installation. If the arm pushes into the wall or the piping can rotate freely, do not use the new head as leverage to diagnose it.

If the existing arm is stable and its geometry passes the template check, keeping it reduces the scope. If changing the arm is necessary to make a large head fit, reconsider the product first. Moving supply plumbing or opening a wall is beyond a simple shower-head swap.

Confirm the connection details

Read the new head’s manual and dimensional sheet. Confirm the thread designation, whether a screen or flow component must remain in place, and whether the joint seals on threads or on a washer. Kohler’s retrofit document illustrates a 1/2-inch-14 NPT elbow in that particular assembly, but that drawing does not establish the connection for every product.

The KALLISTA/Kohler manual specifies thread sealant tape and warns against pipe dope for its showerhead. Kohler’s replacement guide likewise uses tape, while some shower components seal with a supplied gasket instead. Use the method stated for the exact head. Extra tape and extra force do not cure mismatched threads.

Tools and room preparation

  • New shower head, manual, and dimensional drawing
  • Tape measure, cardboard, pencil, and painter’s tape
  • Adjustable wrench, pliers, or strap wrench only when the manual calls for one
  • Finish-protecting cloth, cleaning cloth, bucket, and towels
  • The specified thread tape, screen, gasket, and supplied parts

Turn the shower off and let the head drain. Protect the tub or receptor and cover the drain so a small washer cannot disappear. In a tight enclosure, place tools in removal order outside the door rather than on a narrow ledge. Make sure the door can stay open without striking you or the hardware.

Ordered installation for a tight enclosure

  1. Record the old position. Photograph the arm angle and measure the old head’s projection before removing anything.
  2. Run the dry clearance plan. Use the cardboard profile and reject a head whose useful adjustment range collides with the room.
  3. Remove the old head. Hold the arm while turning the head counterclockwise. Protect finished surfaces and use a tool only as needed.
  4. Inspect the arm. Stop for movement at the wall, damaged threads, cracks, or unexplained moisture.
  5. Clean the exposed threads. Remove old sealing material without scoring the arm. Keep debris out of the pipe.
  6. Prepare the connection. Install the specified tape, gasket, and screen in the stated orientation.
  7. Start by hand. Turn the new head slowly. Back off immediately if it starts crooked or binds.
  8. Align and tighten. Bring the head to its useful compact-room angle, then use only the manual’s tightening method. Do not overtighten to gain a few degrees.
  9. Restore the room. Remove the drain cover, tools, and towels before running water.

Check leaks, spray, and stability separately

First run water at a modest setting while keeping the connection visible. Look and feel for droplets at the head-to-arm joint. Dry the joint and repeat, because residual water can imitate a leak. If the joint leaks, turn the water off, let pressure fall, remove the head, and inspect the sealing parts and thread engagement. Do not keep tightening a visibly crooked joint.

Second, test every intended angle and spray setting from inside the enclosure. Watch the door gap, side panel, curb, and wall. A watertight threaded joint does not prove that the selected head fits the room; overspray is a layout failure.

Third, turn the water off and confirm that adjustment does not rotate the arm or make the head sag into glass. The fixed, handheld, and combo comparison helps confirm that a fixed format suits the room, while the general shower head replacement guide explains the broader swap.

When to call a professional

Call a plumber when the arm or concealed elbow moves, the wall opening shows moisture, threads are cracked or badly corroded, or the replacement requires moving the supply. A plumber should also resolve a persistent leak that remains after the exact manual’s sealing parts are installed correctly. If the head conflicts with tempered glass or enclosure hardware, consult the enclosure manufacturer rather than altering the glass.

How we chose

The plan uses manufacturer material for removal, thread preparation, controlled tightening, flushing, and leak checking. It adds a compact-room clearance gate based on the measurable geometry of the actual head and enclosure. Head-only work is deliberately separated from arm and concealed-piping work so a simple replacement does not expand unnoticed.

What we could not verify

The sources do not define “compact bathroom,” a universal clearance around a fixed head, or one tape procedure for every model. They do not verify that all heads share the same thread or sealing method. Final fit therefore depends on the selected head’s manual, dimensional drawing, existing arm, and enclosure.

FAQ

Is a small-diameter head always best in a compact shower?

No. Projection, pivot range, arm shape, and spray direction can matter more than face diameter. Check the full moving profile.

Can I angle a large head away from the glass?

Only if the useful angle remains stable, clears every surface, and keeps spray inside the wet area. Do not rely on a position the joint cannot hold.

Should I replace the shower arm at the same time?

Not automatically. Keep a sound, stable arm when its position and threads suit the new head. Replacing it introduces a concealed connection and more risk.

How tight should the new head be?

Follow its manual. Start by hand and use only the specified tool and tightening method. Stop before forcing the head merely to change its final angle.

Why does the joint still drip after adding more tape?

The cause may be crossed or damaged threads, a missing washer or screen, the wrong sealing method, or a cracked fitting. More tape is not a diagnosis.

What if the shower arm turns while I remove the old head?

Stop. Movement can disturb the concealed arm-to-elbow joint. Have the support and connection evaluated before installing the replacement.

Bottom line

Install the fixed head only when its complete adjustment envelope clears the compact enclosure and the existing arm stays firm; if fit requires forcing the angle or moving plumbing, choose another head or call a plumber.
